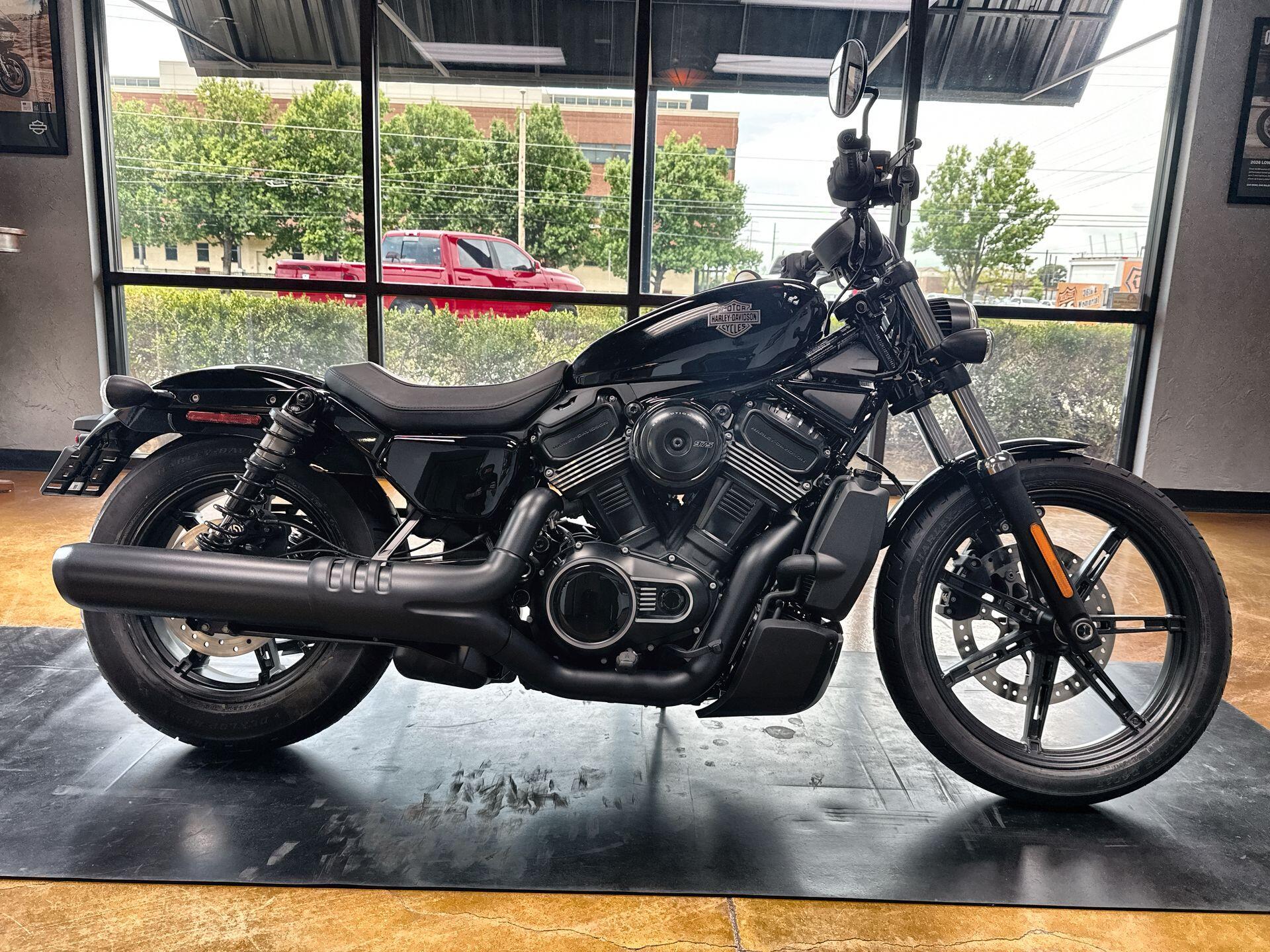

‹ Home › Inventory › 2026 Harley-Davidson® Nightster® Vivid Black Black Trim

At 481 lbs wet with a low 27” seat height, the 2026 Nightster carries its weight where it counts: low, centered, and in your control. Add a blacked-out 975T Revolution Max® motor, selectable ride modes, LED lighting, and legacy Sportster styling, and you’ve got an incomparably capable machine, no matter where you’re coming from.

Specifications

Dimensions

add remove
- Length:

  88.6 in
- Seat height, unladen:

  27.8 in
- Rake (steering head):

  30
- Trail:

  5.4 in
- Wheelbase:

  60.8 in
- Tires, front specifications:

  100/90-19 57H
- Tires, rear specifications:

  150/80B16 77H
- Fuel Capacity:

  3.1 gal
- Oil capacity:

  4.75 qt.
- Weight, as shipped:

  463 lbs
- Weight, in running order:

  481 lb
- Tire, type:

  Dunlop® Harley-Davidson Series Bias Blackwall
Engine

add remove
- Engine:

  Revolution® Max 975T
- Bore:

  3.8 in
- Stroke:

  2.6 in
- Displacement:

  59.50 in³
- Compression ratio:

  12:01
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  71.5 ft-lb
- Engine torque (RPM):

  5750
- Horsepower:

  91 HP / 68 kW @ 7500 rpm
- Lean angle, right (deg.):

  32
- Lean angle, left (deg.):

  32
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  52 mpg (4.5 l/100 km)
Powertrain

add remove
- Primary drive:

  Gear, 49/89 ratio
- Gear ratios (overall) 1st:

  12.21
- Gear ratios (overall) 2nd:

  9.022
- Gear ratios (overall) 3rd:

  6.994
- Gear ratios (overall) 4th:

  5.641
- Gear ratios (overall) 5th:

  4.731
- Gear Ratios (overall) 6th:

  4.131
Chassis

add remove
- Front fork:

  41mm SHOWA® Dual Bending Valve conventional forks. Aluminum fork triple clamps
- Rear shocks:

  Rear suspension is dual outboard, direct-acting (no linkage) emulsion technology shock absorbers with coil springs and a threaded collar for pre-load adjustment
- Wheels, front type:

  Aluminum cast, satin black
- Wheels, rear type:

  Aluminum cast, satin black
- Brakes, type:

  Front: single rotor, floating, hub - mounted; Rear: solid uniform expansion rotor
- Brakes, caliper type:

  Front: axially mounted, 4-piston caliper; Rear: floating, single piston caliper
Infotainment

add remove
- Screen size:

  4" Analog Instrument with Segmented LCD
- Type:

  Analog display
- Languages:

  English (default)
- Vehicle information screen:

  Total Odometer (Selectable Miles or km), Trip A/B, Gear Position Indication, Fuel Range, 12/24 Hr Clock, Digital Tachometer, Segmented Fuel Level, Ride Mode Indication
